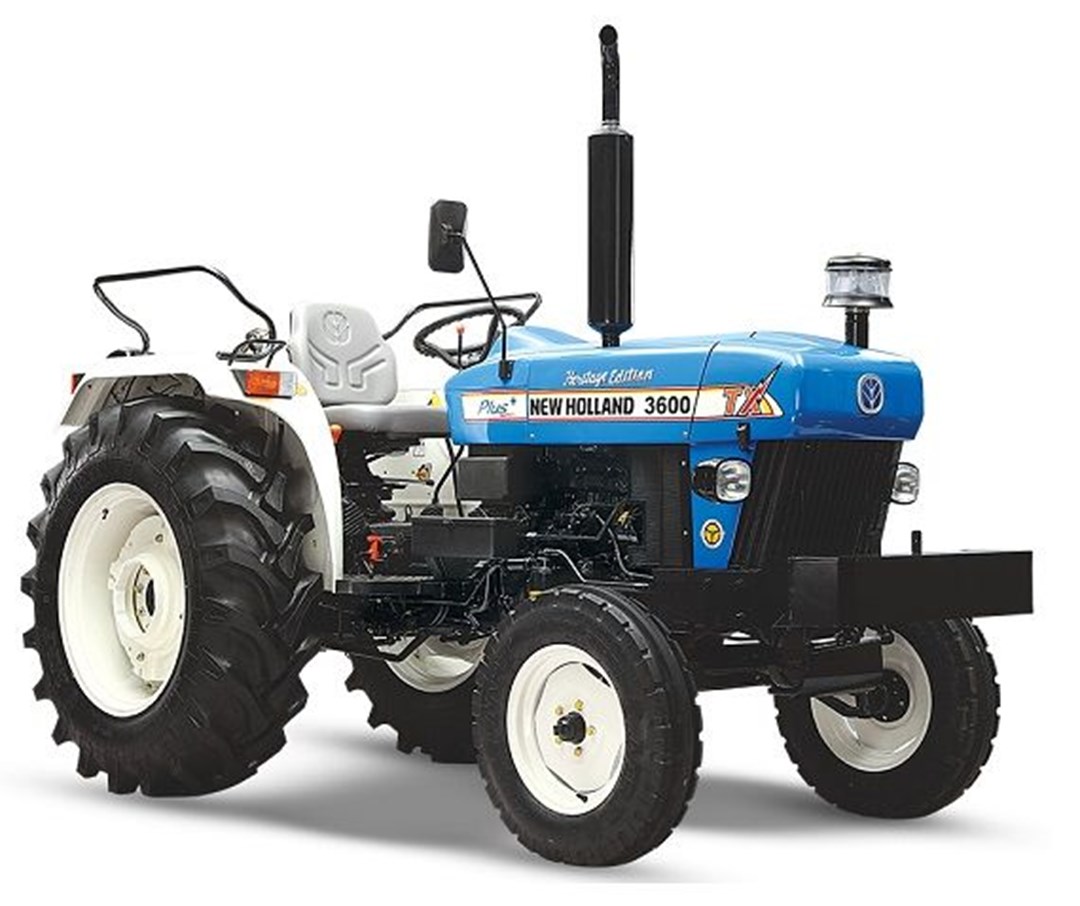

New Holland 3600 TX Heritage Edition (2WD)

New Holland 3600 TX Heritage Edition is a 47 HP tractor, with 3 cylinders with an engine capacity of 2700 CC and its engine-rated RPM is 2250. It comes with a Single/Double (optional) clutch, has 8 Forward + 2 reverse gearboxes. It is manufactured with Mechanical, Real Oil Immersed Brakes, with a 47-litre large fuel tank capacity for long hours on farms.

New Holland 3600 TX Heritage Edition (2WD)
New Holland 3600 TX Heritage Edition (2WD)
Starts From ₹6.5 L
  • Brand NEW HOLLAND
  • Horse Power(HP) 47
  • No of Cylinders 3
  • Max PTO HP 43 HP
  • Engine Capacity 2700 CC
  • Gear Box 8Forward +2 Reverse/ 8+8 Synchro Shuttle*
  • Brakes Mechanical, Real Oil Immersed Brakes
  • Lifting Capacity 1800 Kg(s)
  • Warranty * 6000Hours/ 6 Years
  • I'm interested in this tractor. Get On Road Price

New Holland 3600 TX Heritage Edition (2WD)

New Holland 3600 TX Heritage Edition is a 47 HP tractor, with 3 cylinders with an engine capacity of 2700 CC and its engine-rated RPM is 2250. It comes with a Single/Double (optional) clutch, has 8 Forward + 2 reverse gearboxes. It is manufactured with Mechanical, Real Oil Immersed Brakes, with a 47-litre large fuel tank capacity for long hours on farms.

NEW HOLLAND 3600 TX Heritage Edition Feature

The Heritage Edition has a Max useful power - 43hp PTO, Power & 38.32hp Drawbar Power, Max Torque - 167.9 Nm and Eptraa 7 speeds PTO.

Independent PTO Clutch Lever is quite easy to engage and the PTO shaft is controlled with a separate clutch.

Fully Constant Mesh AFD Transmission is avoiding the vibrations and noise helical gears are used, it creates less noise and its mechanical efficiency is high as compared to other transmission systems.

HP Hydraulic with Lift-O-Matic to lift and return the implement to the same depth and having a lock system for better safety.1800 KG Lift Capacity makes field implement operation easy.

Multi-sensing with DRC Valve benefits in enhancing machine productivity, enhancing speed control, reducing heat generation and improving system efficiency.

Straight Axle Planetary Drive system could be used to secure higher gear ratio in compact space and have higher torque transmission capability and will have lower inertia.

With the 8 Forward + 8 Reverse Synchro Shuttle, Operators can easily select speeds or switch directions without having to completely stop the tractor.

The Heritage edition has a SOFTEK Clutch useful for very smooth functioning.

It has a Double Metal Face designed for use under severe service conditions at relatively low circumferential speeds. They offer reliable protection against solid and liquid contaminants as well as leak-proof retention of lubricants.

The Heritage addition has a Transmission for both PTO & Rear Axle for smooth field operations.

New Holland 3600 TX Heritage Edition (2WD) Basic Information

  • Brand NEW HOLLAND
  • Variant 2WD
  • Horse Power 47 HP
  • Starting Price 6.5L
  • Max Price* 7L
  • Warranty* 6000Hours/ 6 Years

New Holland 3600 TX Heritage Edition (2WD) Engine

  • No of Cylinders 3
  • HP Category 47 HP
  • Max PTO HP 43 HP
  • Engine 2700 CC
  • Coolant NA
  • Air Filter Oil Bath with Pre Cleaner

New Holland 3600 TX Heritage Edition (2WD) Transmission

  • Transmission Type Fully Constant mesh AFD
  • Clutch Double/Single (Optional)
  • Gear Box 8Forward +2 Reverse/ 8+8 Synchro Shuttle*
  • Battery 75 Ah
  • Aattery 35 Amp
  • Forward Speed Minimum 3 Kmph
  • Forward Speed Maximum 33.24 Kmph
  • Reverse Speed Maximum 10.88 Kmph

New Holland 3600 TX Heritage Edition (2WD) Brakes and Steering's

  • Brakes Type Mechanical, Real Oil Immersed Brakes
  • Staring Type Power

New Holland 3600 TX Heritage Edition (2WD) Power Take Off and Fuel Tank

  • Power Take off Type Multi Speed PTO
  • RPM 540, 540 E, Reverse PTO
  • Fuel Tank 46L

New Holland 3600 TX Heritage Edition (2WD) Weight and Dimension

  • Total Weight 2040 Kgs
  • Wheel Base 1955 MM
  • Overall Length 3590 MM
  • Overall Width 1725 MM
  • Ground Clearance 425 MM

New Holland 3600 TX Heritage Edition (2WD) Wheels, Tyres and Accessories

  • Lifting Capacity 1800 Kgs
  • 3 Point Linkage HP Hydraulic with Lift-O-Matic; Multi Sensing Point
  • Wheel Drive 2 WD
  • Front 6.5 x 16/ 6.5 x 16 (Optional)
  • Rear 13.6 x 28/14.9 x 28 (Optional)
  • Accessories Front Bumper, Adjustable hook, Drawbar

Additional Features

Super Deluxe Seat, Clutch Safety Lock, Neutral safety Lock, Mobile charging Point.
