VST MT 224 1D AJAI 4WD- 2023, Specifications, Features, And More

VST MT 224 1D AJAI 4WD- 2023, Specifications, Features, And More

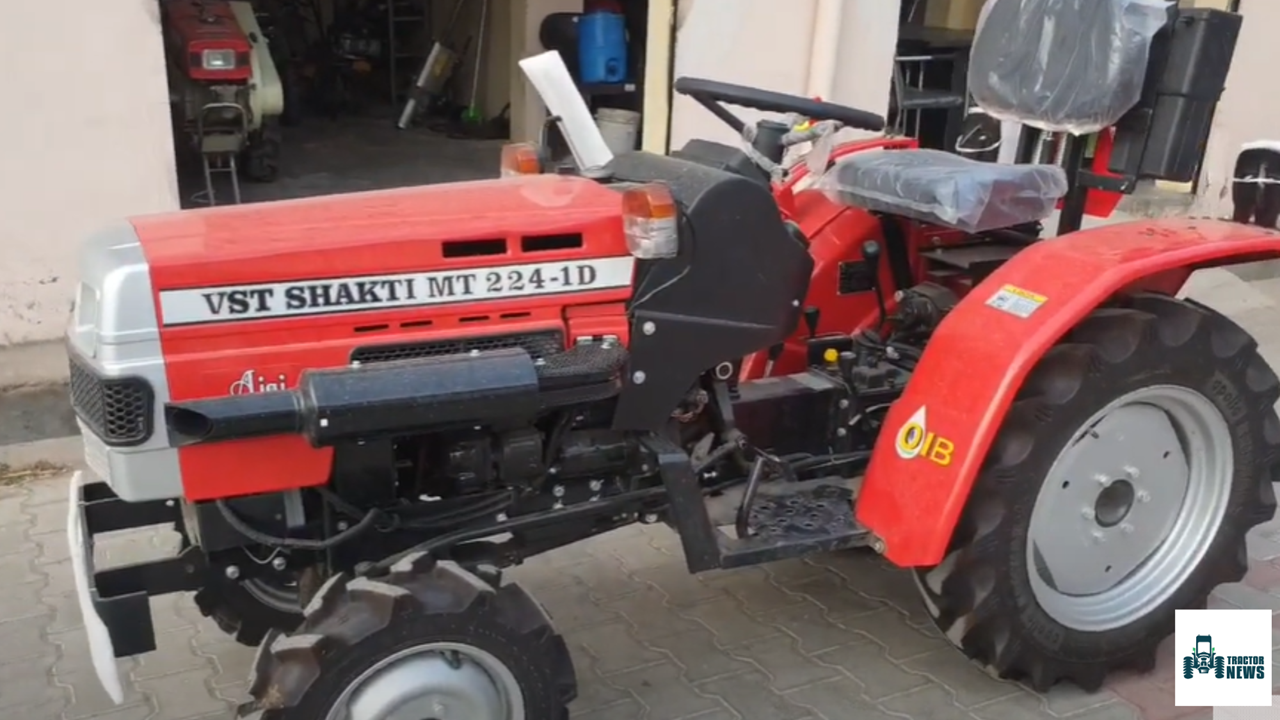

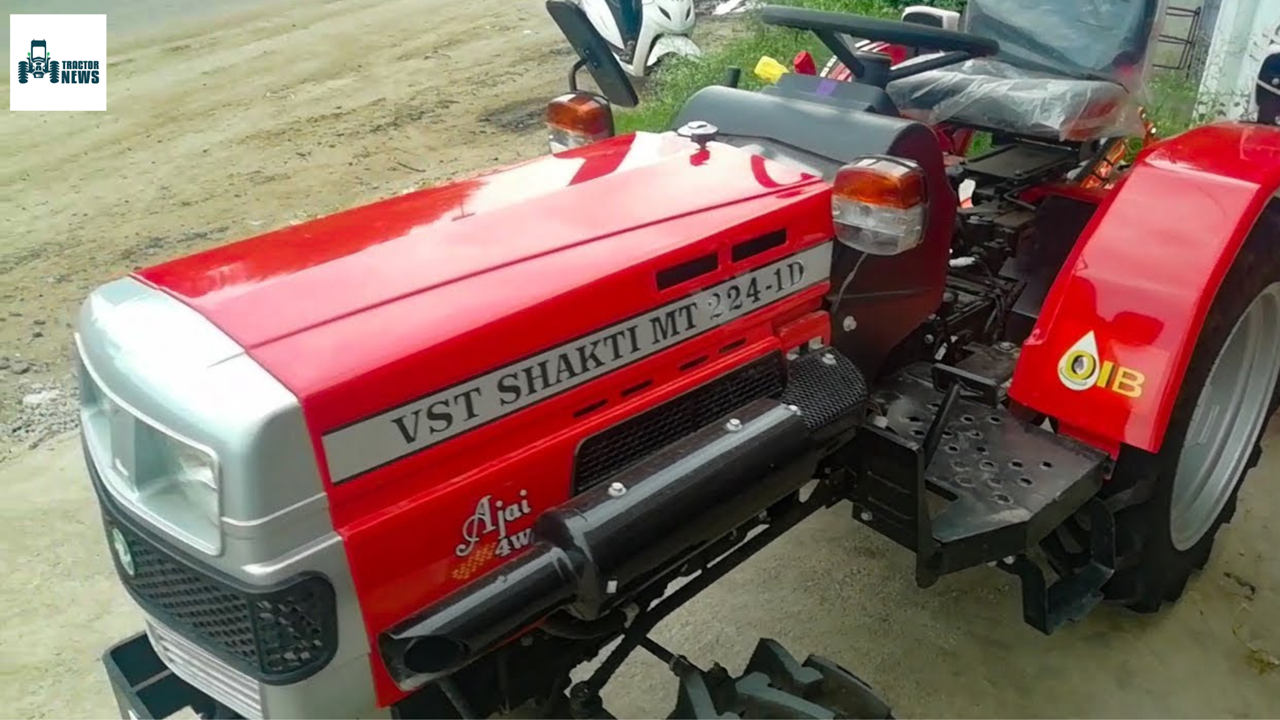

VST MT 224 1D AJAI 4WD is a 22 HP tractor manufactured by VST tractors and tillers. This VST MT 224 1D AJAI tractor facilitated farmers with the best efficiency and performance on the field. The power take-off of VST MT 224 1D AJAI is marked at 18.70 horsepower. An 8-speed gearbox is fitted in the VST MT 224 1D AJAI tractor that is divided into 6 forward and 2 reverse gear speeds. Moreover, oil-immersed brakes are provided in the VST MT 224 1D AJAI 4WD tractor for a better braking experience during farm operations.

Furthermore, the VST MT 224 1D AJAI tractor has an adequate lifting potency of 750 kg. This VST tractor is powered by a 3-cylinder engine setup generating an engine cubic capacity of 980 CC. This tractor is well-known amongst farmers for its 3000- engine rated RPM. Moreover, manual steering comes fitted in this VST MT 224 1D AJAI tractor for better control over the tractor during farming operations. Here we’ve mentioned the thorough analyses of the VST MT 224 1D AJAI tractor including its features, engine details, technical details, and much more. Continue reading the article to get more detailed information on VST MT 224 1D AJAI 4WD tractor.

Unique features of VST MT 224 1D AJAI 4WD

  • Usable with various implements
  • 8-speed gearbox
  • 4-wheel drive
  • OIB for less slippage and better grip
  • Easy pulling and lifting potency
  • Smooth steering functioning for work efficiency



General technical details of VST MT 224 1D AJAI 4WD

Wheel drive

4WD

Forward gears

6

Reverse gears

2

Brakes

Oil immersed brakes

Clutch

Single clutch

Steering

Manual steering

Fuel tank

18 liters

Price

Rs. 3.71- 4.12 lakhs



Engine details of VST MT 224 1D AJAI 4WD

HP Category

22 HP

Engine Capacity

980 cc

Engine Rated RPM

3000 RPM

Max Torque

54

No of Cylinder

3

Air Filter

Dry type

Cooling System

Water Cooled Radiator with compensatory tank

Read more about the model:- VST MT 224 1D AJAI 4WD- 2023, Specifications, Features, And More

VST MT 270- VIRAAT 4WD PLUS- 2023, Specifications, Features, & More

Additional information

The power output of the VST MT 224 1D AJAI 4WD is 22 HP. This powerful engine of the VST MT 224 is mated to a 10-speed transmission with six forward and two reverse gears. The VST MT 224 AJAI is driven by a 980 CC 3-cylinder engine. This VST MT 224 engine is capable of producing 22 horsepower. Users regard this engine as trustworthy, owing to its engine-rated RPM of 3000 RPM. The VST MT 224 1D has an 8-speed side shift gearbox. This VST MT 224 tractor also has a PTO HP of 19 HP at 540 RPM and a 6 spline PTO type. This VST MT 224 tractor has a 6 X 12-inch tire setup in the front and an 8.3 X 20-inch tire setup in the rear. This VST MT 224 tractor has an 18-liter fuel tank for extended productivity and efficiency. The wheelbase of the VST MT 224 1D AJAI 4WD is 1420 mm. The tractor's overall length is 2565 mm, its width is 1130 mm, and it has a ground clearance of 230 mm.

Gearbox

Clutch Type

Single Clutch

Transmission Type

Sliding Mesh

Speed Min-Max

1.37 - 19.3 kmph

Reverse Speed Min - Max

1.76 - 7.72 kmph

Forward Gears

6

Reverse Gears

2



Power Take-off

PTO Type

6 Spline

PTO RPM

692, 1021

PTO POWER

18.79 HP
